Scope of delivery:
• Auxiliary heater 9032228B
• Rotary selector control element 1322581
• Installation kit 9032244A

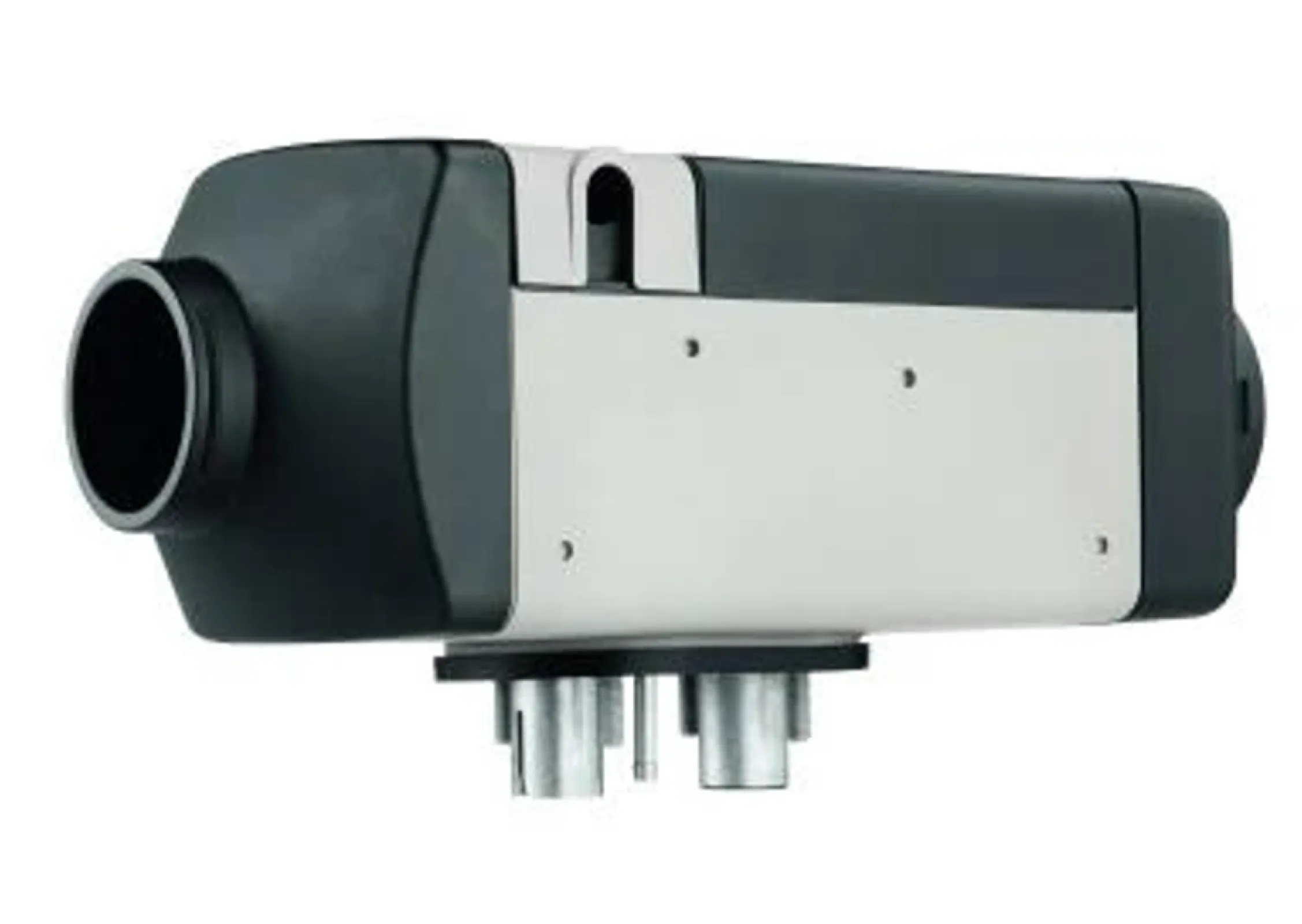

Original Webasto Air Top 2000 STC heater:
• Voltage 12V
• Heating output at partial load – 0.9 kW

Heating output at full load – 2.0 kW
• Fuel consumption at partial load: 0.12 l/h

Fuel consumption at full load: 0.24 l/h
• Rated power consumption: 14 - 29 W
• Heating air flow rate at engine speed around 0.5 mbar: max. 93 m3/h at 4750 rpm
• Fuel: Diesel/FAME (Biodiesel) EN 590, B100 FAME EN 14214
• Operating temperature -40°C to +40°C
• Dimensions (L x W x H): 311 x 211 x 141 mm 120 x 121 mm
• Weight 2.6 kg

Rotary selector control element:
• Suitable for 12/24 V
• Suitable for: Air top 2000, Air top 2000S, Air top 2000ST, Air top 2000STC, Air top 3500, Air top 5000, Air top EVO 3900, Air top EVO 5500, Air top EVO 40, Air top EVO 55
• Dimensions 35 mm x 58 mm x 48 mm
• Installation depth including plug: 55 mm
• Alternative article number: 82819B
• With switch function and lighting
• Panel diameter Ø 49 mm

Original Webasto installation kit:
• Installation kit for Air Top 2000 STC
